-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, epidemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.

-86°C Cascade ultra low temperature freezer

Mainstream Cascade refrigeration system. HC refrigerant, environmental protection and energy saving, which can effectively save 50%.

Special noise reduction design, in each possible noise generating parts are equipped with special material. High density fire-proof sound-absorbing cotton is usded in the system for perfect noise reduction performance.

FILED PROVEN RELIABILITY

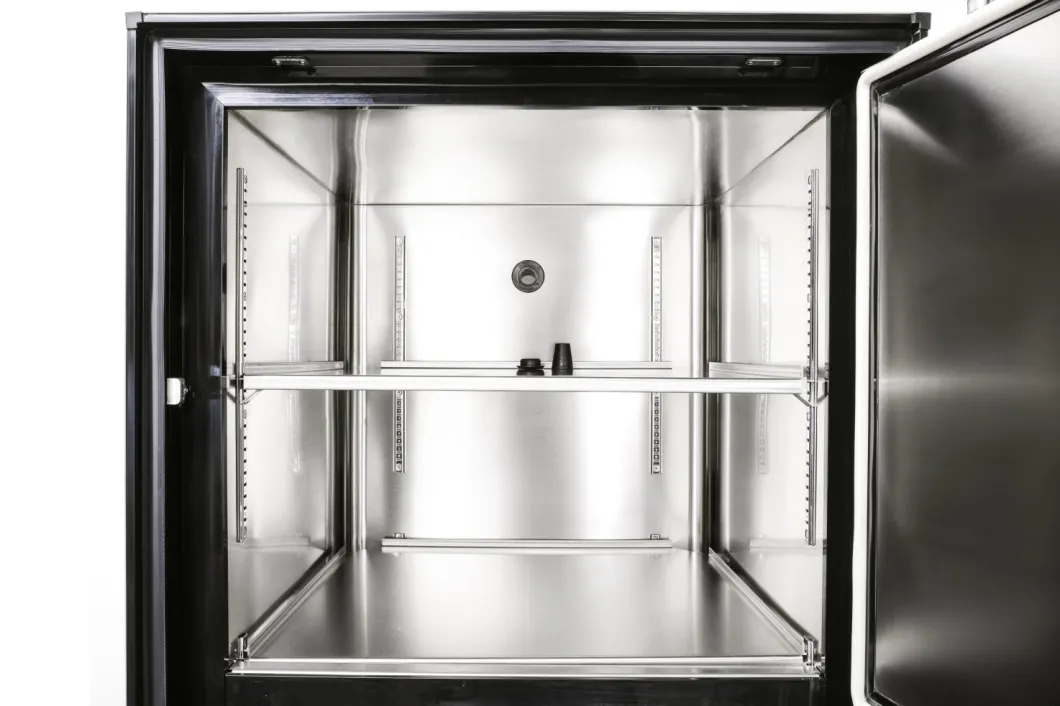

• Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
• Specialized control system design for a well-balanced operation of dual refrigeration system.
• Positive filed proven reliability record.

SAFETY

• Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
• Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
• Door open feature standard and USB port for temperature date downloading standard on upright models.
• Remote alarm contacts.

ENERGY SAVING

• Unique door seal design for the minimum loss of cold temperature during a door opening.
• High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
• HC refrigerant with better efficiency and less energy cost.

KEY DESIGN FEATURES

• Microprocessor-controlled system designed for range of -40°C to -86°C for cabinet space with 1°C increment.
• Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
• Optional temperature recorder, storage racks and box.

INSTALLATION AND APPLICATION

• Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition
• Suitable for 10°C to 32°Cambient temperature.

CO2 & LN2 BACKUP SYSTEM

• Independent equipment CO2 back up system, LN2 back up system a backup refrigeration system for Ultra-Low Temperature Freezer failures and power outages.
• The backup refrigeration system consists of a control system and a supply connection System.
• Adjust the solenoid Valve's On-off according to its own temperature control probe.A liquid nitrogen tank or liquid carbon dioxide tank that is connected by a solenoid valve as a Reserve.
• The solenoid valve is powered by an internal rechargeable battery.

	Model	MDF-86V408
Specificaitons	Shelf/drawer QTY	Stainless steel shelf/3
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	HC
	Power Consumption(kWh/24h)	11.6
	Noise(db)	50
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	-40~-86ºC
Cooling system	Compressor brand/QTY	SECOP/2
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	845W
	Current(A)	7A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	408/14.40
	NT./GT.(kg)	292/317
	Exterior size(W*D*H)(mm)	900*940*1940
	Interior size(W*D*H)(mm)	606*575*1180
	Package size(W*D*H)(mm)	955*960*2100
	CBM	1.93
	20GP/40GP/40HQ	12/24/24
Frozen Racks	Racks	16(5X4,4X4)
	Boxes (2 Inches)	288
	Samples(2ml)	28800
Alarm	High/low temperature	Y
	Power failure	Y
	Abnormal voltage	Y
	Sensor error	Y
	Filter screen check	Y
	Thermostat failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	72h
Accessories	Castor	Y
	Inside door	2
	Test hole QTY/diameter	1/25MM
	USB port	Y
	Chart recorder	Optional
	Data logger	Optional
	Remote alarm port	Y
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	ISO.CE
