Energy Saving -25 Degrees Upright 528 Liters Medical Deep Freezer With Multi Drawers

-25ºC Deep freezer

-25ºC deep freezer offers a large capacity storage space .

Integrated design of cold shelf and evaporator provides additional refrigeration efficiency.

This products designed to store vaccines blood plasma, and many other biological materials, Installations can be found in researching institution and clinical sites in life science, electronic testing and medical markets.

KEY FEATURES

• Microprocessor control, adjustable temperature range: -10°C to -25°C
• LED digital display and increment at 0.1 °C.
• Permanently lubricated cooling fan for safety and longevity.
• Wide voltage band for 187V-242V.

SAFETY GUARANTEE

• Multiple malfunction alarms to detect high and low temperature , sensor error, power failure, temperature controller malfunction
• Two types of alarm indications: audible buzzing and visual flashing light.
• Door lock for storage safety.

HUMANIZED DESIGH

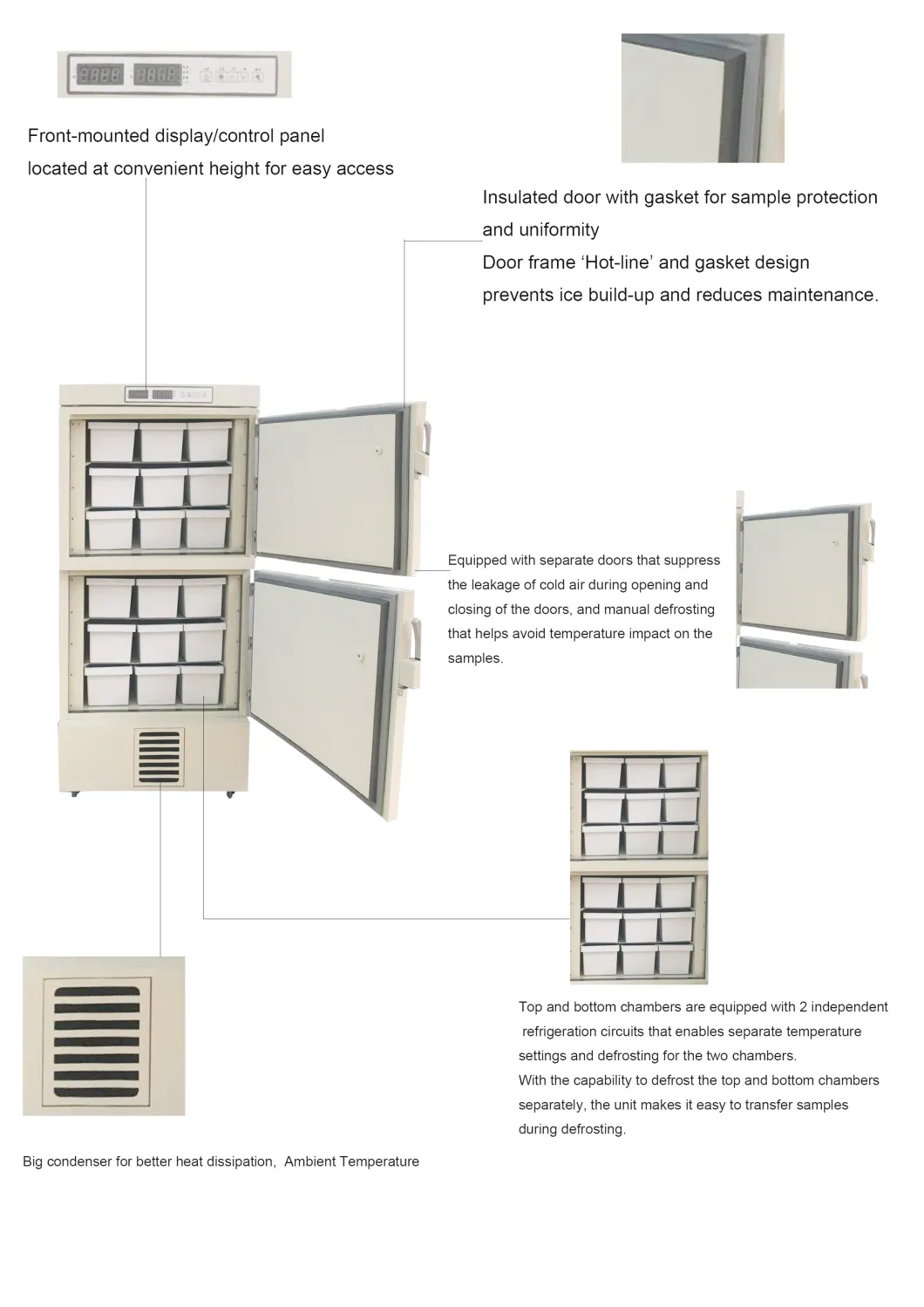

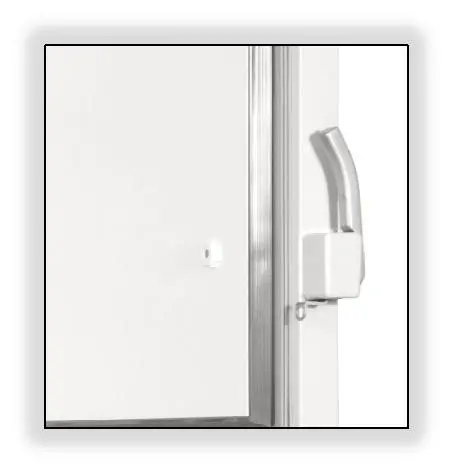

• Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
• Lockable caster design for customer to move as needed

TEMPERATURE CONTROL MODE

• With the famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -10°C~-25°C.
• High light digital display
• High/low temperature alarm, the alarm temperature can be set as needed
• Platinum esiance temperature sensor, sensing temperature accurately

REFRIGERATION SYSTEM

• Imported brand compressor work with CFC-Free environmental refrigerant.
• High density insulation foam layer with better heat preservation effect.

	Model	MDF-25V528
Specificaitons	Shelf (drawer )	Shelves/drawers
	Cooling method	Direct cooling
	Defrost	Manual
	Refrigerant	R290
	Power consumption(kWh/24h)	3.4
	Noise(db)	55
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	'-10°~-25°C
Cooling system	Compressor brand/QTY	MEIZHI/2
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	260W
	Current(A)	1.9A
Material	Inside material	Color sprayed steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	528/18.64
	NT./GT.(kg)	151/184
	Exterior size(W*D*H)(mm)	910*845*1875
	Interior size(W*D*H)(mm)	(651*631.5*635)*2
	Package size(W*D*H)(mm)	930*970*2000
	CBM	1.80
	20GP/40GP/40HQ	12/ 24/24
Alarm	High/low temperature	Y
	Power off	Y
	Sensor malfunction	Y
	Ambient temperature(ºC)	Y
	Abnormal voltage	/
	Temperature controller malfunction	Y
	Door ajar	Y
	Power failure backup system(alarm)	8H
Accessories	Caster	Y
	Test hole	2/25MM
	USB port	Y
	Data logger	Optional
	Remote alarm	Y
Other	Certification	ISO9001,13485,14001,CE
