Auto-Cascade System -86 degree ultra low temperature Refrigeration for vacainne and laboratory

-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.

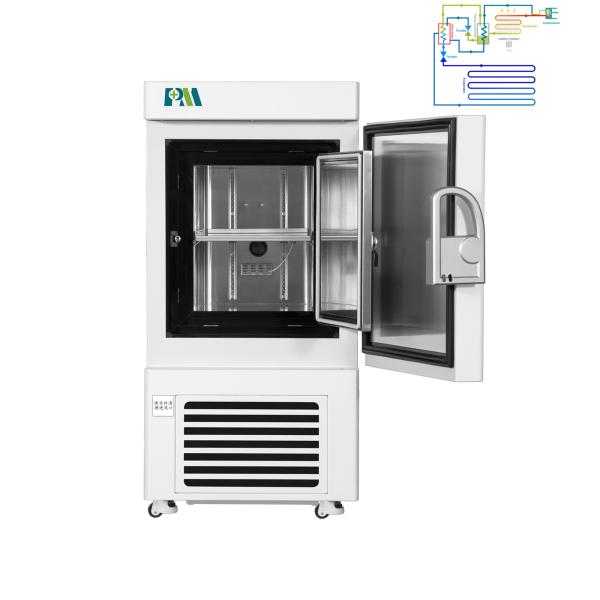

-86°C Auto-Cascade ultra low temperature freezer

Auto-Cascade cooling system, cooling fast and easy to maintain, energy saving and environmental friendly.

Self-developed mixed refrigerant, 50% energy saving,
Cooling speed increased by 40%.

SAFETY

• Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
• Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
• Door open feature standard and USB port for temperature date downloading standard on upright models.
• Remote alarm contacts.

ENERGY SAVING

• Unique door seal design for the minimum loss of cold temperature during a door opening.
• High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
• HC refrigerant with better efficiency and less energy cost.

KEY DESIGN FEATURES

• Microprocessor-controlled system designed for range of -40°C to -86°C for cabinet space with 1°C increment.
• Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
• Optional temperature recorder, storage racks and box.

INSTALLATION AND APPLICATION

• Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition
• Suitable for 10°C to 32°Cambient temperature.

	Model	MDF-86V58
Specificaitons	Shelf/drawer QTY	Stainless steel shelf/1
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	Mixed-gas
	Power Consumption(kWh/24h)	5.6
	Noise(db)	/
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	-40~-86ºC
Cooling system	Compressor brand/QTY	SECOP/1
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	442
	Current(A)	2.67A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	58
	NT./GT.(kg)	115/155
	Exterior size(W*D*H)(mm)	635*757*1212
	Interior size(W*D*H)(mm)	330*453*410
	Package size(W*D*H)(mm)	730*845*1400
	CBM	0.87
	20GP/40GP/40HQ	12/43/43
Frozen Racks	Racks	2(6X2)
	Boxes (2 Inches)	24
	Samples(2ml)	2400
Alarm	High/low temperature	Y
	Power failure	Y
	Abnormal voltage	Y
	Sensor error	Y
	Filter screen check	Y
	Thermostat failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	72h
Accessories	Castor	Y
	Inside door	1
	Test hole QTY/diameter	1/25MM
	USB port	Y
	Chart recorder	/
	Data logger	Optional
	Remote alarm port	Y
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	CE
