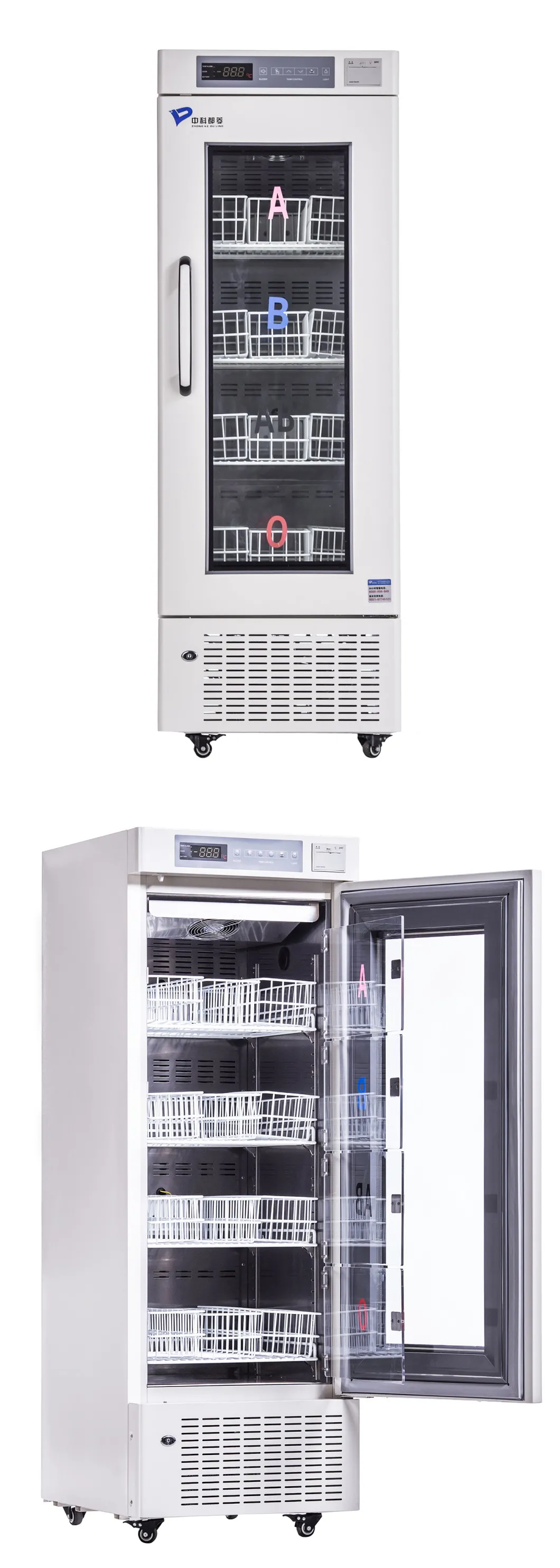

4ºC Blood Bank Refrigerator

Promed blood bank refrigerator are specially designed to store blood bags and blood-derived products.

HOT TIPS

• Large storage capacity 66*450ml blood bags
• Individual Arcylic inner doors
• blood bags Reliable control system 4±1°C
• Forced-air cooling system, frost-free
• Build-in back-up battery: 72 hours power failure alarm
• Wide voltage range, 187V~242V available
• 5 visual and audible alarms

Features

• Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C
• Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity
• Three layer toughened glass door with heater to avoid condensation
• 304 stainless steel inner chamber for friendly using and easy cleaning
• Wide available voltage range: 187V~242V

SAFETY GUARANTEE

• Safety door lock and controller setting password to prevent unauthorized access
• Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power
• Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening
• Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
• Power failure protection: turn on delay of the cooling system after power failure
• Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed
• Temperature printer: print current inside temperature automatically per 10 minutes

Humanized design

• 4 casters with stopper for easy moving and fixation

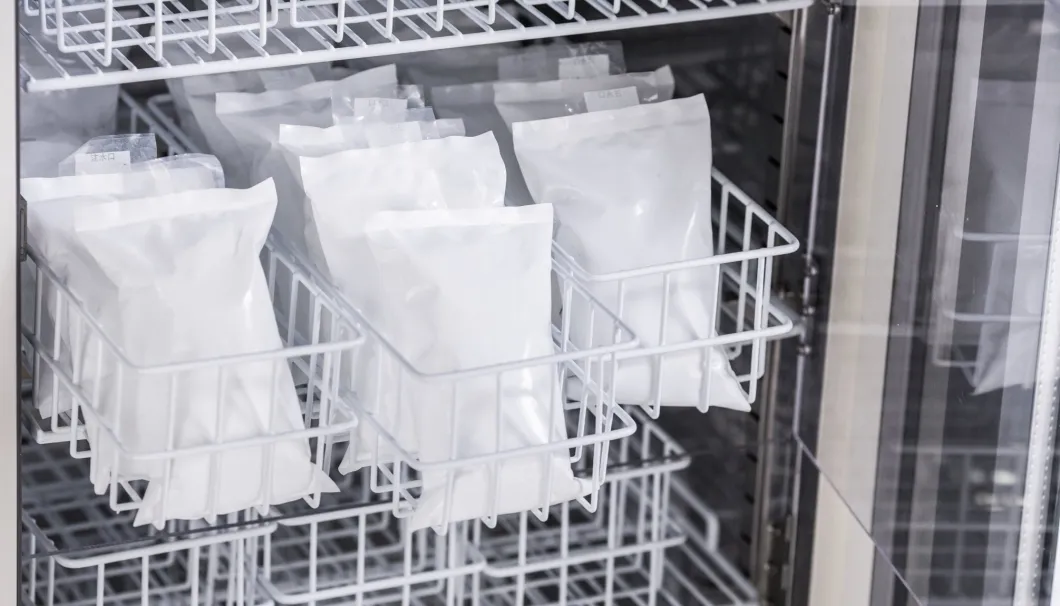

• 4 adjustable shelves and 12 blood baskets for easy using
• Special designed service-free drainage system ensure no water in the cabinet
• Standard 25mm test hole for easy connecting to temperature monitoring systems
• Automatic on/off LED light with manual switch on control panel

REFRIGERATION SYSTEM

• Imported brand compressor work with CFC-Free environmental refrigerant.
• High density insulation foam layer with better heat preservation effect.

	Model	MBC-4V208
Specificaitons	Shelf/drawer	Shelves/4
	Cooling	Forced -air Cooling
	Defrost	Auto
	Refrigerant	R134a
	Power consumption(kWh/24h)	2.22
	Noise(db)	51.2dB(A)
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	4±1ºC
Cooling system	Compressor brand/QTY	EMBRACO/1
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	183W
	Current(A)	0.8A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	208/7.34
	Bloodbags(450ml)	132
	NT./GT.(kg)	96/120
	Exterior size(W*D*H)(mm)	540*640*1530
	Interior size(W*D*H)(mm)	432*462*978
	Package size(W*D*H)(mm)	590*700*1700
	CBM	0.70
	20GP/40GP/40HQ	27/60/60
Alarm	High/low temperature	Y
	Power off	Y
	Temperature controller malfunction	Y
	Backup battery malfunction	Y
	Ambient temperature	10~32ºC
	Power failure backup system(alarm)	8h
Accessories	Caster	Y
	Outer door/Type	1/Heating & Foam glass door
	Inner door	4
	Test hole	1/25MM
	Thermal Printer	Y
	Light	LED
	Temperature recorder	Optional
Other	Qualifications	ISO9001,ISO13485,ISO14001,CE

Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.

Anhui Zhongke Duling Commercial Appliance Co.Ltd is a high-tech enterprise which specialized in designing, manufacturing and marketing of laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.

We operate with 2 brands
Mether with Safety, Profession, Environmental protection
Promed with Value, Stability, Energy saving

We pursue the concept of "For a healthy world, For a healthy future" with the strong technical support from R&D team. We produce environmentally friendly products for high-end brand technical areas like research institutes, hospitals, laboratories, commercial retails with the dedication to build a green bridge for health of the humanity and the world.

Anhui Zhongke Duling Commercial Appliance Co., Ltd, is a high-tech enterprise which specicalized in designing, manufacturing and marketing of laboratory& medical refrigerators and freezers, such as pharmacy refrigerators, ultra low temperature freezers, deep freezers, walk-in cold room, customized commercial freezers and cold chain equipments.

We pursue the concept of " For a healthy world, For a healthy future" with the strong technical support from R&D team. We produce environmentally frendly products fro high-end brands technical areas like research insitites, hospitals, laborartories, commercial retails with the dedicataion to build a green bridge for health of the humanity and the world.

We had botained the ISO 13485, ISO 9001, ISO14001, ISO45001 certificate for company management, CE, MDR for the prodcut quality control system, strike foward to the international enterprise with the quality management goal of orderly, continuous improvement and controllable risk.

Operating honestly, focusing on quality and complying with the law is our basic principle. We aim to serve for the society and for a better environment with producing environmentally products and offering best customer service.

WHO ARE WE?

Zhongke Duling is a High-tech manufacturer established since 2011, provides storage and transportation products and solutions for biological sample banks, blood safety, vaccine safety, medical supplies and reagent safety from -196 ℃ to 8 ℃ as a complete cold chain provider. We focuses on the professionalism and stability of the product, designed to provide customers with an efficient and energy-saving product.
