MDF-40V278W With 7 Drawers And The Material Outside And Inside Are All Sprayed Coated Steel

-40ºC Deep freezer



-40ºC Medical Deep Freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.

KEY FEATURES

• Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
• Microprocessor control, adjustable temperature range: -20°C to -40°C
• LED digital display and increment at 0.1 °C.
• Permanently lubricated cooling fan for safety and longevity.
• Wide voltage band for 187V-242V.

SAFETY GUARANTEE

• Multiple malfunction alarms to detect high and low temperature , sensor error, power failure, temperature controller malfunction
• Two types of alarm indications: audible buzzing and visual flashing light.

BOX

• The box is made of high quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.

TEMPERATURE CONTROL MODE

• With the famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -25°C~-60°C.
• High light digital display
• High/low temperature alarm, the alarm temperature can be set as needed
• Platinum esiance temperature sensor, sensing temperature accurately

REFRIGERATION SYSTEM

• Imported brand compressor work with CFC-Free environmental refrigerant.
• High density insulation foam layer with better heat preservation effect.

Specificaitons	Model	MDF-40V278W

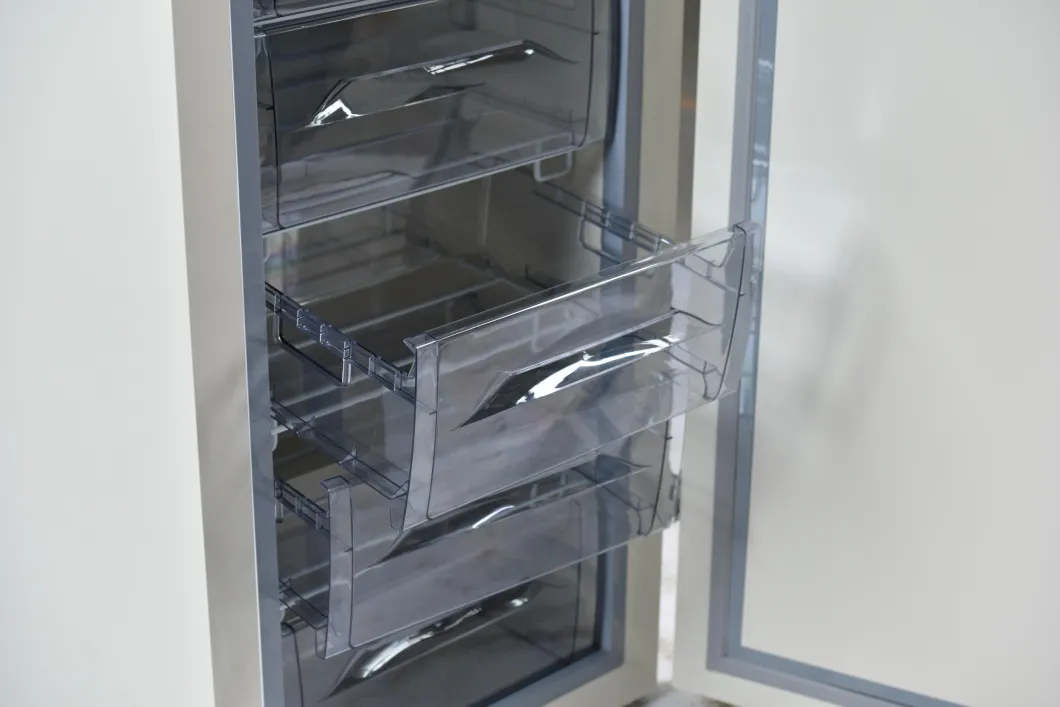

	Shelf/drawer	drawers7
	Cooling method	Direct cooling
	Defrost	Manual
	Refrigerant	R290
	Power consumption(kWh/24h)	3
	Noise(db)	50
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	·-30~-40ºC
Cooling system	Compressor brand/QTY	CUBIGEL/1
	Condenser	Wire tube
	Sensor	NTC

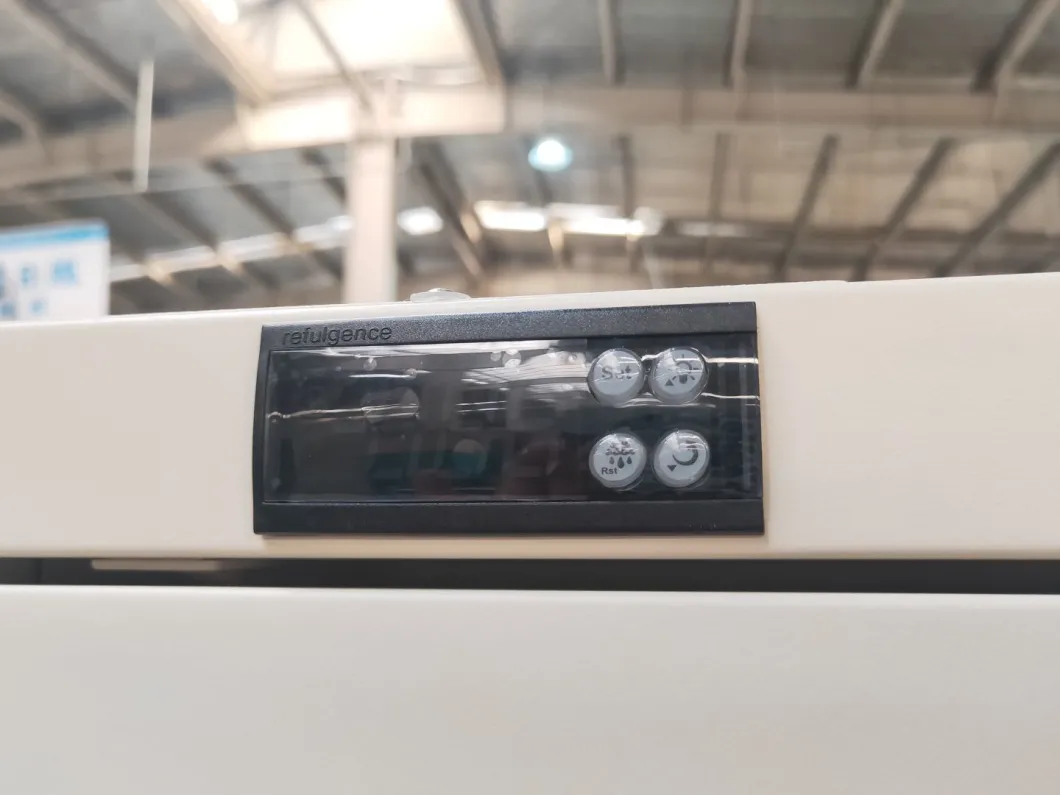

	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	185W
	Current(A)	1.6A
Material	Inside material	Color sprayed steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	278/9.81
	NT./GT.(kg)	79/104.5
	Exterior size(W*D*H)(mm)	670*640*1695
	Interior size(W*D*H)(mm)	480*415*1460
	Package size(W*D*H)(mm)	725*665*1850
	CBM	0.89
	20GP/40GP/40HQ	24/54/54
Alarm	High/low temperature	Y
	Power failure
	Sensor error	Y
	Filter check	/
	Temperature controller failure	Y
	Low battery	/
	Condenser clean	/
	High ambient temperature	/
	Door ajar	Y
	Power failure backup system(alarm)
Accessories	Foot	Y
	Castor	Y
	Inside door	Y
	Test hole QTY/diameter	Y
	USB port	/
	Remote alarm port
Other	Certification	ISO9001,13485,14 001,CE
